Custom Flowformed Cones & Funnel Examples
Optimize flow and performance with custom flowformed cones and funnels from PMF Industries. These custom components achieve precise geometries and smooth transitions, essential for aerospace nozzles, filtration systems, and chemical processing equipment.

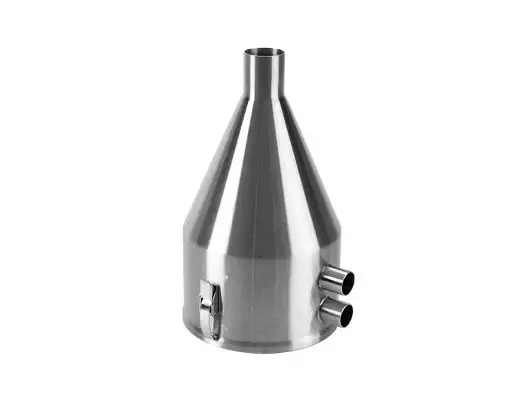

Funnel Assembly
Material: 304 Stainless Steel
Industry: Pharmaceutical
Dimensions: 2" x 7.875" x 14"
Other: Flowformed and Welded

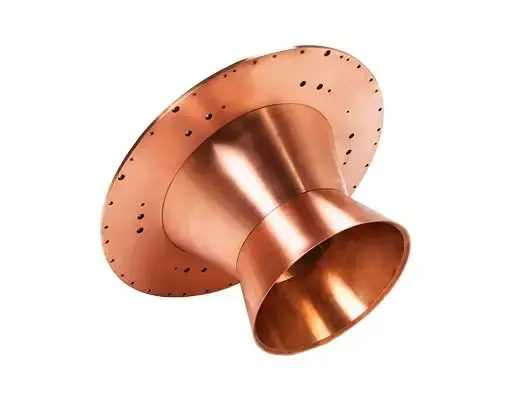

Reflector Shield
Material: Copper
Industry: Micro-electronics
Dimensions: 6" x 14" x 11"
Other: Machined

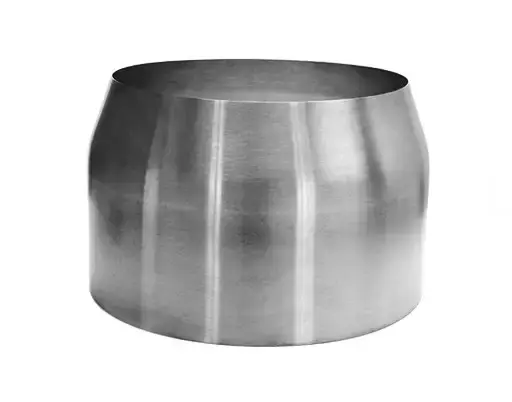

Gas Generator Case
Material: 410 Stainless Steel
Industry: Aerospace
Dimensions: 16" x 9.75"
Other: Flowformed

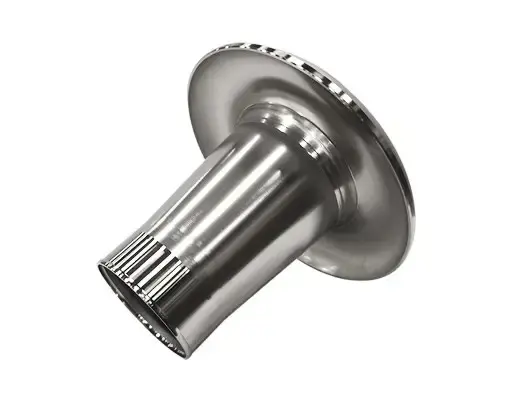

Exhaust Diffuser
Material: HR-120
Industry: Energy
Dimensions: 16.25" x 9.5"
Other: Flowformed, One-piece Construction, No Welds

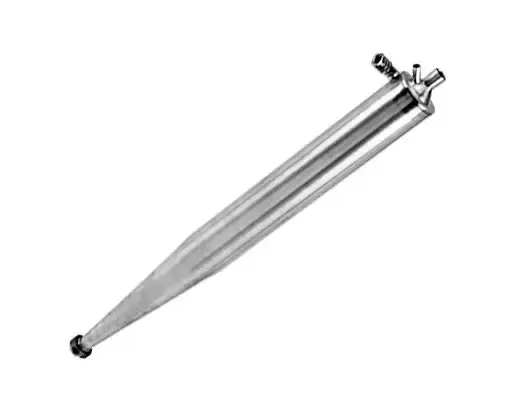

Upper Cleaner Cone Assembly
Material: 304 Stainless Steel
Industry: Pulp and Paper
Dimensions: 1.75" to 4.5" x 32"
Other: Flowformed, Welded, Machined

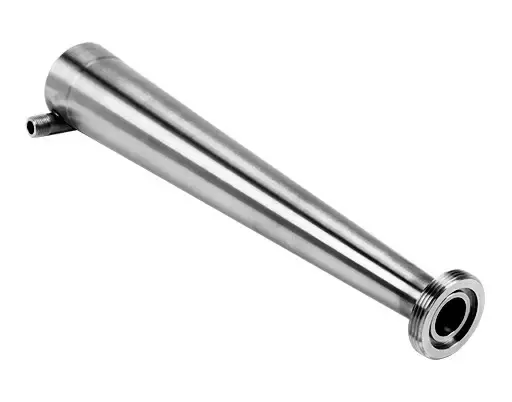

Lower Cone Cleaner
Material: 304 Stainless Steel
Industry: Pulp and Paper
Dimensions: 1.75" to 4.5" x 20.75"
Other: Flowformed, Welded, Machined

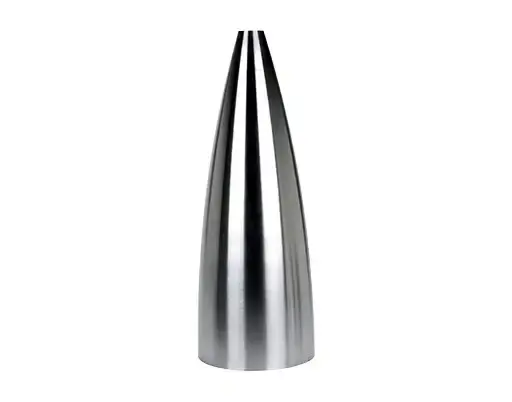

Shroud Nose Cone
Material: 304 Stainless Steel
Industry: Aerospace
Dimensions: 17.25" x 45"
Other: Flowformed

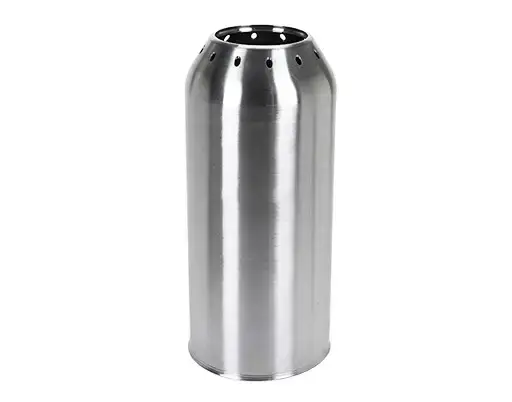

Grid Cylinder
Material: 304 Stainless Steel
Industry: Defense
Dimensions: 8.5" x 18"
Other: Flowformed, Welded, Machined

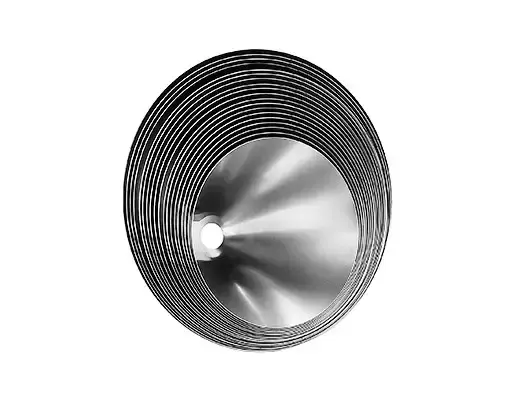

Conical Shim Set
Material: 301 Stainless Steel
Industry: Aerospace
Dimensions: 4" x 1.5" x .028" Thick
Other: Flowformed

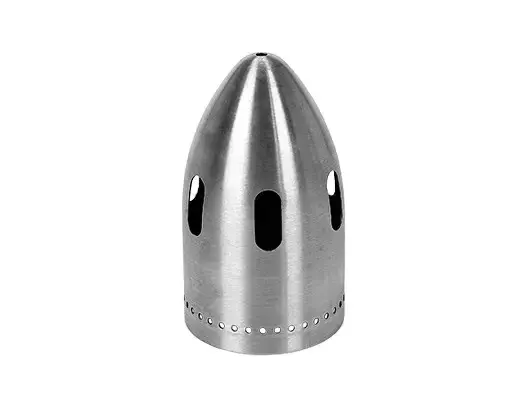

Nose Cone
Material: Hastelloy X
Industry: Aerospace
Dimensions: 2.75" x 5"
Other: Flowformed

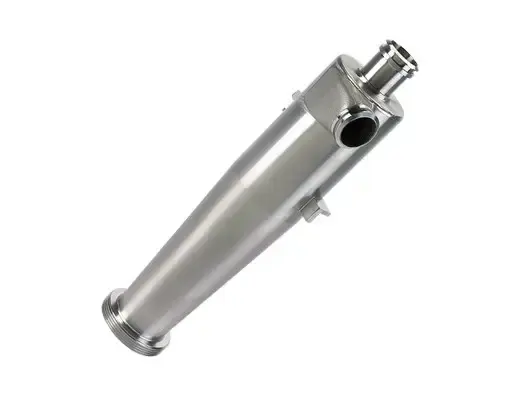

Upper Cone Assembly
Material: 304 Stainless Steel
Industry: Pulp and Paper
Dimensions: 4.5" x 6" x 24.5"
Other: Flowformed, Welded, Machined
